Women Safety Wearable Device 🚨
IoT-based emergency SOS and GPS tracking wearable using ESP32, SIM800L, and Neo-6M GPS.
📌 Project Features
- Emergency SOS Alert System
- Real-time GPS Tracking
- SMS Notification using GSM
- ESP32-based Wearable Device
- Portable Hardware Prototype

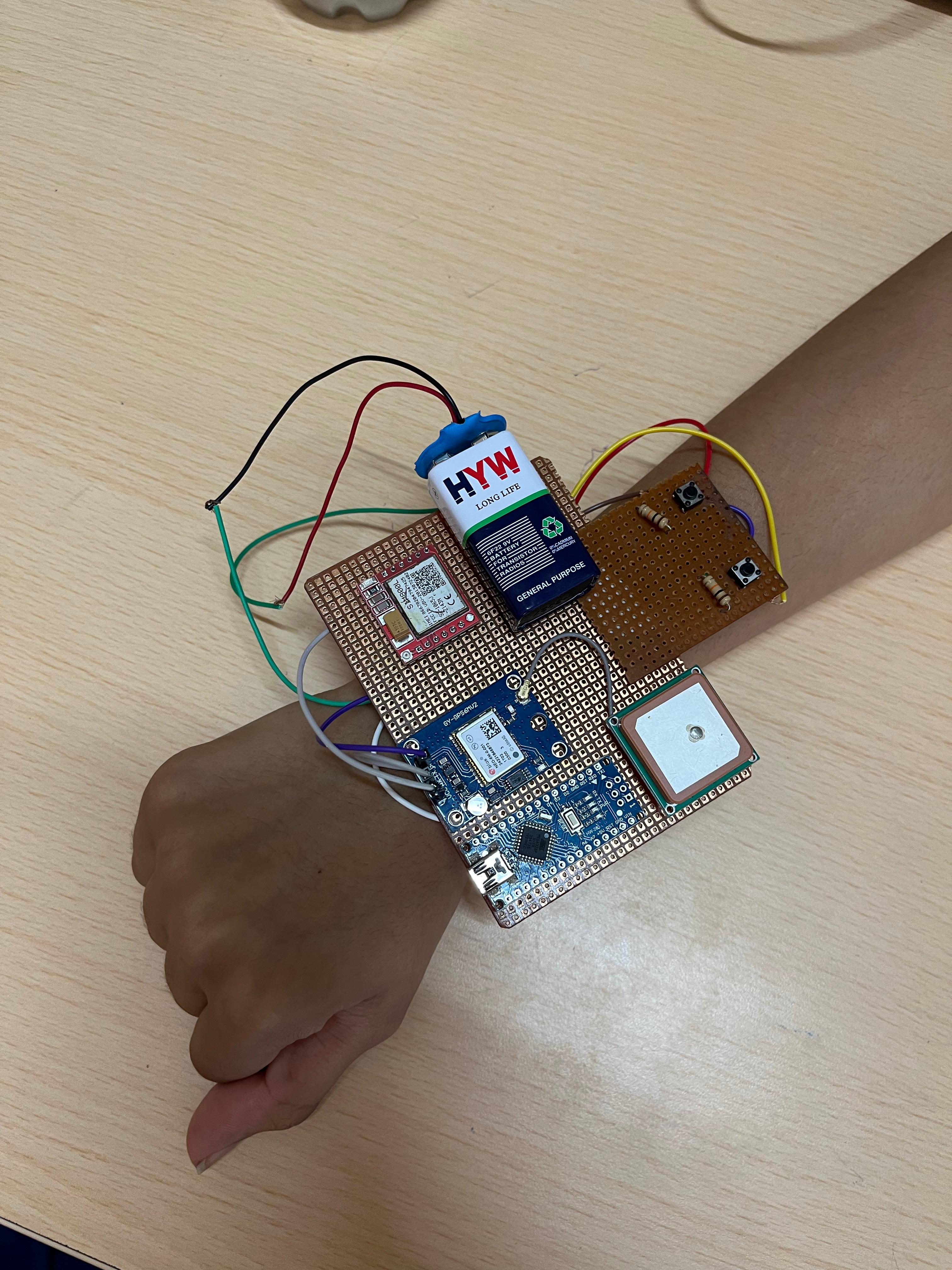

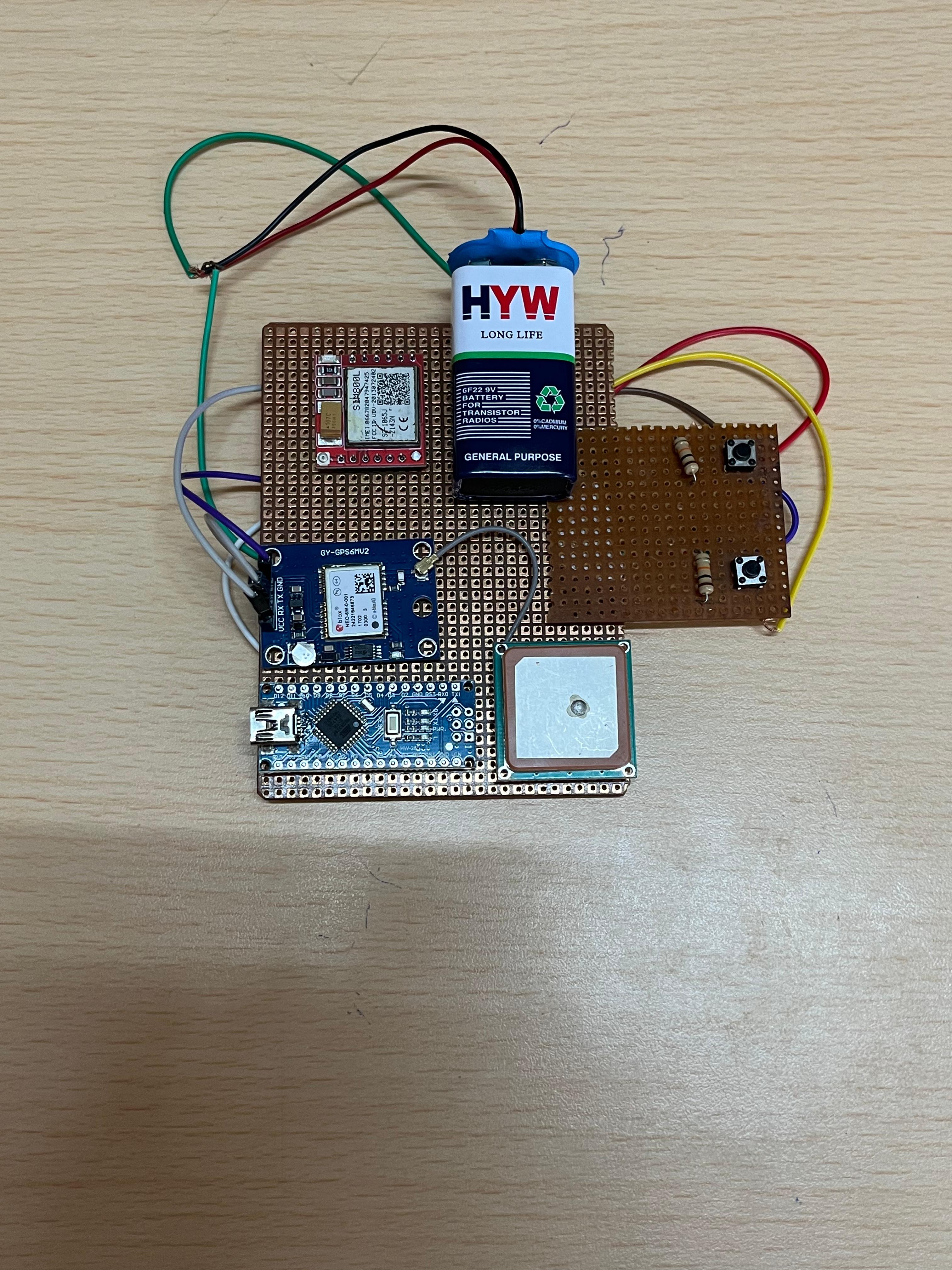

🛠 Hardware Prototype

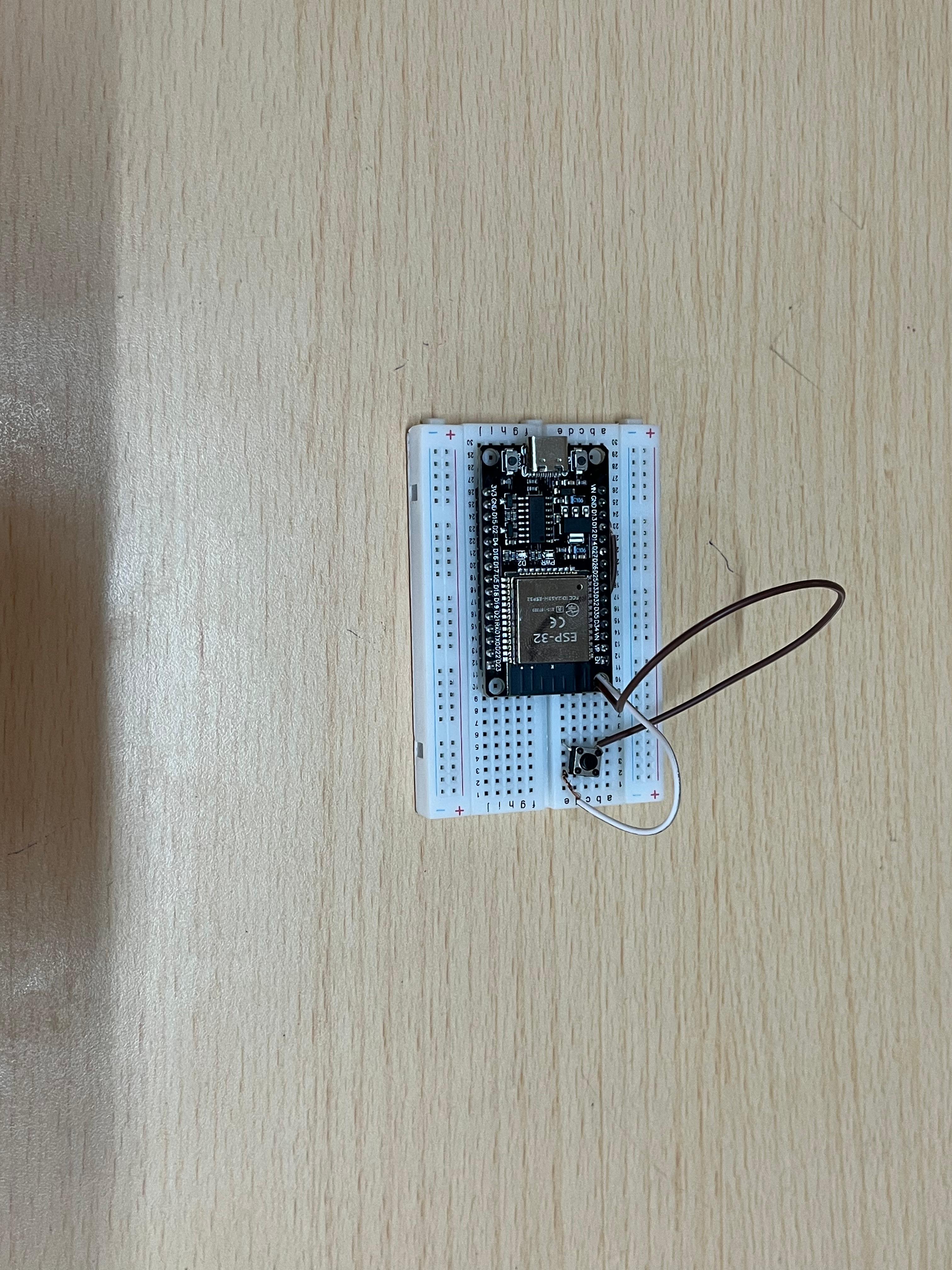

⚡ ESP32 Controller

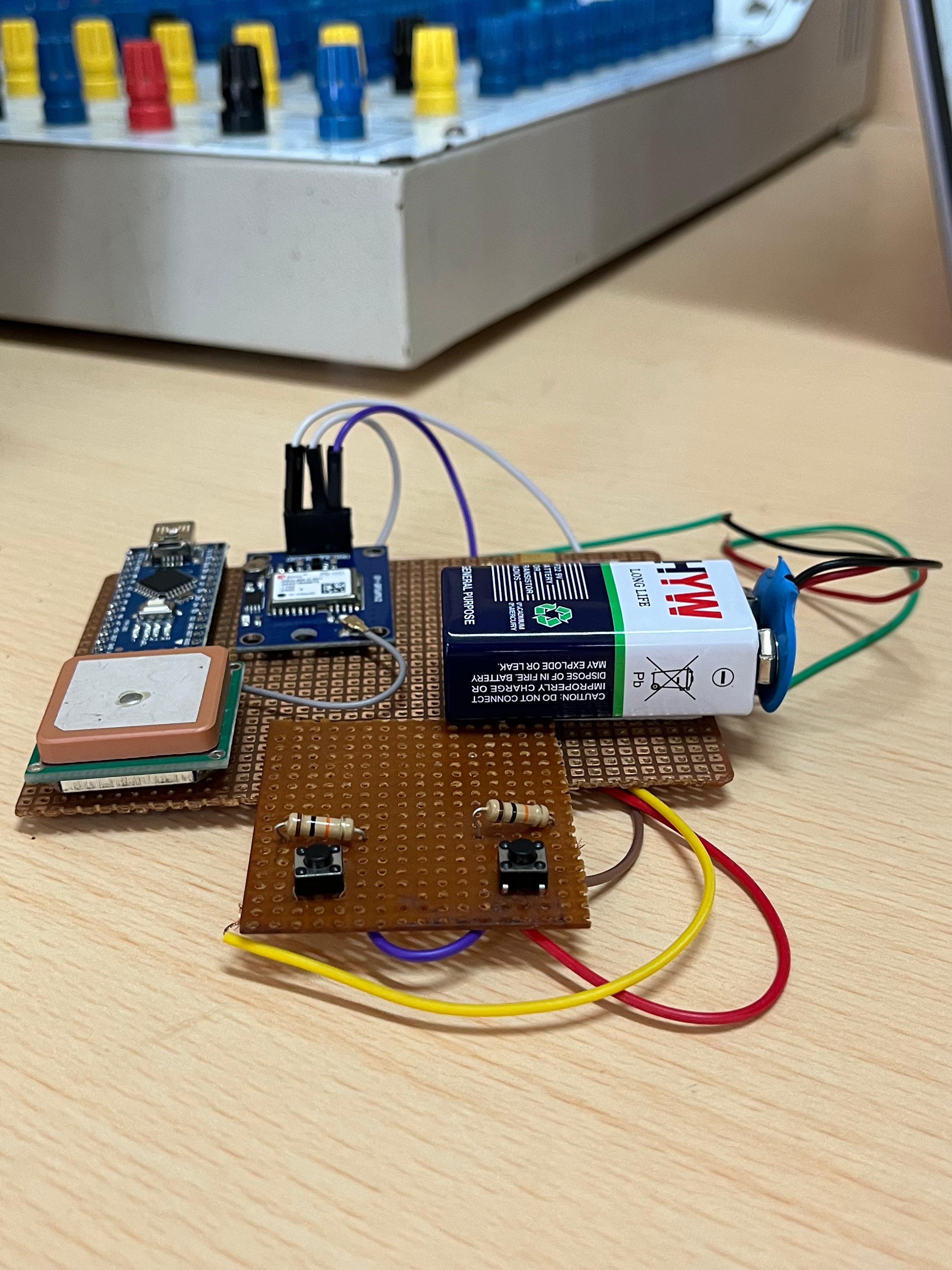

🔍 Hardware Close-up
🔌 Circuit Connections
| Component | ESP32 Pin |
|---|---|
| SOS Button | GPIO 4 |
| SIM800L TX | RX2 |
| SIM800L RX | TX2 |
| GPS TX | RX1 |
| GPS RX | TX1 |
